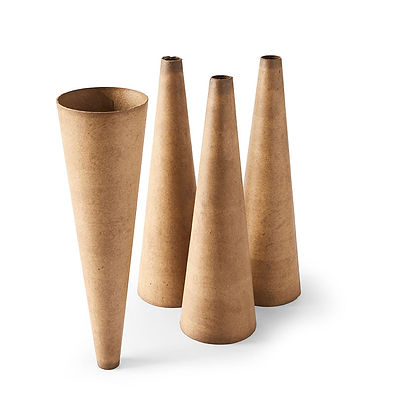

WAXED CARDBOARD CONES
Waxed cones for holding-down bolt installations.
A range of durable waxed cardboard cones for forming bolt voids around holding-down bolts in concrete foundations. Supplied independently or as part of a complete Centraliser bolt-box package.
SIZE RANGE
Cone heights from 229 to 762 mm
Cone dimensions and compatibility should be checked against the project specification before ordering.
Centraliser Type | Cone Height Size (mm) | Status | Cone Top Size (mm) | Cone Bottom Size (mm) | Units Per Box |
|---|---|---|---|---|---|
Set-1 | 229 | Available | 70 | 25 | 100 |
Set-2 | 305 | Available | 92 | 25 | 100 |
Set-3 | 380 | Available | 108 | 25 | 100 |
Set-4 | 457 | Available | 114 | 30 | 50 |
Set-5 | 534 | Available | 118 | 30 | 50 |
Set-6 | 610 | Available | 132 | 30 | 80 |
Set-7 | 762 | Available | 132 | 30 | 48 |
PLAN YOUR NEXT PROJECT
Planning your next structural steel project?
Send us your bolt schedule, baseplate details, cone sizes or steel layout. We'll help identify the appropriate Centraliser units and quantities for your project.
07958 007153
UK-wide supply
